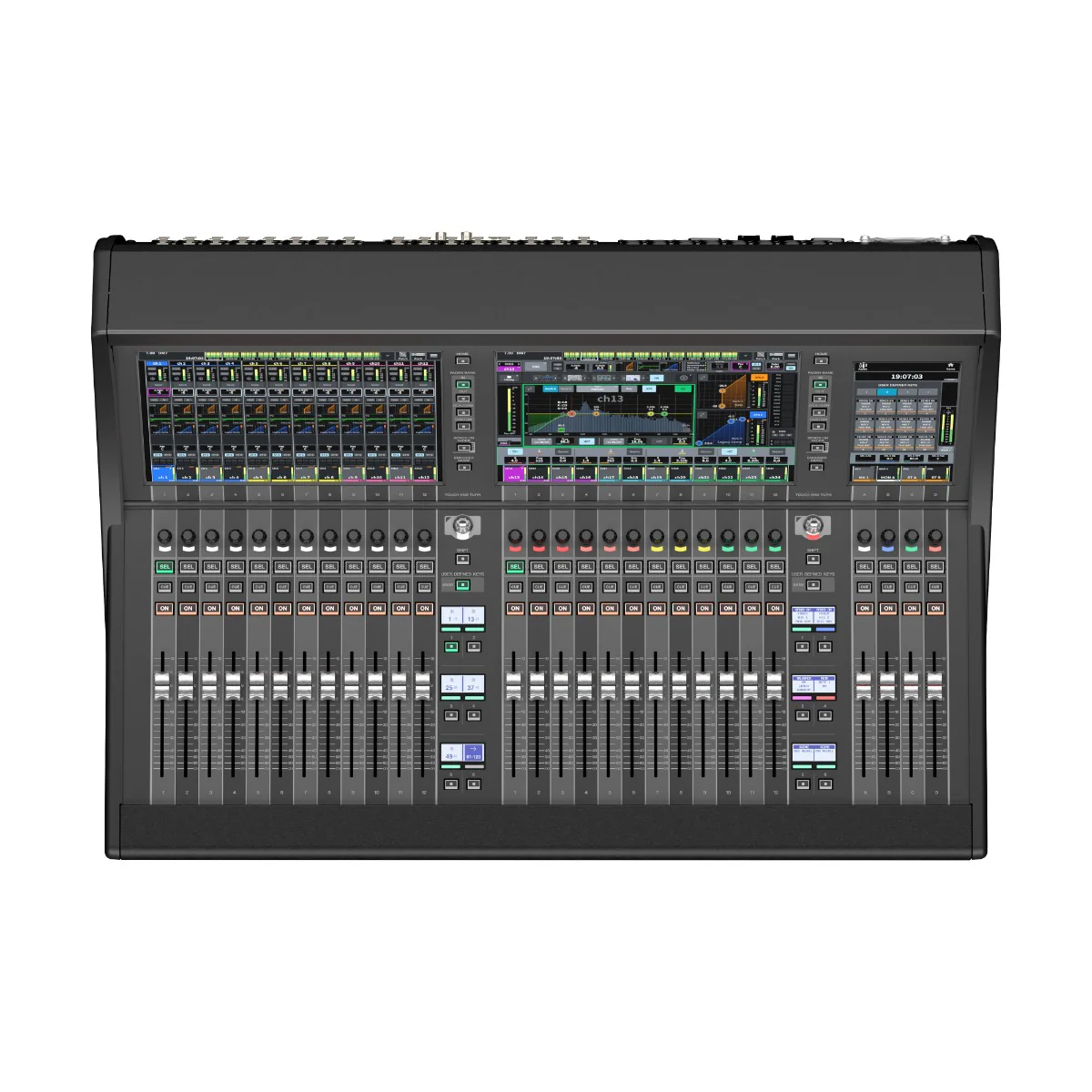

DM7 Digital Mixing Console

The DM7 is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM7 is configured with 24 + 4 faders and a 2 x 12” + 1 x 7” multi-touch screen.

Input mixing channels: 120 mono
Buses: 48 Mix + 12 Matrix + 2 Stereo
Display: 12.1" multi-touch screen x 2, 7" multi-touch screen x 1
Faders: 28 (12 + 12 + 4)
Analog I/O: 32 inputs / 16 outputs
Dante: 144 in / 144 out
AES/EBU: 2 in / 2 out (with SRC)
Slot: PY Slot x 1
USB Audio Interface: 18 in / 18 out
Power supply: Redundant power supply built-in
Power consumption: 240 W
Dimensions (W x H x D): 793 mm x 324 mm x 564 mm (31.3" x 12.8" x 22.2")
Net Weight: 23.5 kg (51.8 lb)

More than 30 years since the release of Yamaha’s first digital mixer, the DMP7, the landscape of professional audio has seen a steady progression in technological advancements and innovations that have impacted mixing and recording styles significantly.

DM7 series mixing consoles represent a sizable step forward in this evolution of form, functionality, and flexibility with their intuitive UI, compact design, and comprehensive suite of powerful features that allow them to outperform other mixers in their class in an impressive range of audio environments. From broadcasting, streaming, and music production, to live hybrid events and concert performances, the advanced capabilities of the DM7 series set a new standard in operability and workflow while simultaneously staying true to Yamaha’s sonic tradition of “natural sound”. As the times continue to change, your DM7 will keep you ahead of the curve with a user experience that’s a cut above anything in its class, and sonic performance well beyond the expectations of audiences and engineers alike.

Off to a solid start

It all starts with your sound, and if the input section of your mixer is compromised or lacking in any way, your mix isn't likely to meet your, or your audience’s expectations. To meet our own very strict standard of sound quality, the inputs of Yamaha consoles and I/Os are meticulously designed and constructed. We take every aspect of the initial input stage into consideration in order to achieve our signature “transparent sound”, from the individual components, power supply, and grounding, to the circuit layout, and mechanical structure of the inputs.

In addition, the DM7 series supports sample rates up to 96kHz for superior, high-resolution sound quality.

Powerful Channel Strip

The DM7 series Channel Strip is equipped with numerous advanced functions for convenient, intuitive sound creation. In addition to the Channel EQ inherited from the RIVAGE PM, the newly added FET Limiter and Diode Bridge Compressor offer expanded dynamics control, while the new “History” function combines with the existing comps and gates for easier and more precise dynamics adjustment than ever. The “Mix Balance” parameter is yet another new function that allows you to easily mix the original sound with a compressed sound and apply parallel compression. In addition, the order of EQ and Dynamics 2 can now be changed to suit your creative preferences, further expanding the range of sound creation.

The DM7 series also features the Dan Dugan automatic mixer with up to 64 channels in the channel strip as a standard feature. In cooperation with Dan Dugan Sound Design, a US company renowned for its proprietary algorithm-based automatic microphone mixer, the automatic mixer function can be conveniently accessed from the channel strip without the need for EQ RACK resources.

The input meters now also include a histogram display to help adjust HA levels.

Extensive plug-ins and new effects

The DM7 series is equipped with an extensive suite of plug-ins to accommodate a wide range of applications, including VCM models of the renowned Portico 5033 equalizer and Portico 5043 compressor/limiter— both developed through close cooperation with Rupert Neve Designs. Also included are Yamaha's original plug-ins, such as the DaNSe dynamic noise suppressor, and the Dynamic EQ, which are well known among audio engineers.

The FX RACK features high-quality multi-effects processors with forty-three types of high-grade effects including the newly equipped REV HD and REV R3 to inspire a broader depth of creative sound reproduction.

Advanced GUI for intuitive control

The DM7 series advanced graphical user interface is an audio engineer’s delight, offering the ultimate in touch operation convenience that gives users instant intuitive access to the console’s impressive depth of functionality.

The Selected Channel View, which provides a list of operational information on the channel strip, retains the best aspects of previous GUI’s but with an updated operation format that requires fewer steps and less time than ever before.

The same familiar touch screen operation that you use in your daily life is now available on your mixer.

Configure the ideal DM7 system to suit your workflow

The DM7 series ranges from the full-featured DM7-EX, which combines a large 2-bay DM7 with a DM7 control panel equipped with a physical controller, to the rack-mountable DM7 Compact, which is powerful and flexible despite its compact size. With four DM7 systems in total, bundled software, controllable devices, and more, this versatile lineup makes it easier than ever to find the perfect fit for your mixing style, environment, and workflow.

Utility screen for streamlined performance

The DM7 series multiple touch screens provide fast, intuitive operability that will make your mixing experience easier and more enjoyable. The large 12-inch screen provides convenient operation that will allow you to focus more energy on sound creation, and includes the Selected Channel View which ensures all the relevant mixing information you need is close at hand. The newly added 7-inch Utility screen allows you to monitor essentials such as Scene List, User Defined Keys, and Meter at all times for quick and efficient operation.

Advanced Selected Channel View and visible Overview

The DM7 series inherited the Selected Channel View and Overview from the RIVAGE PM series, but also features an updated, more intuitive operation, suitable for the increasing demands of the current state of the art. The Selected Channel View provides a list of important information for each individual channel, giving you quick access to the parameters you want to adjust. It also incorporates the advantages of touch panel operation to reduce the number of steps required to carry out tasks.

Overview, which enables analog console-like operation, is also still available. It lists information on multiple channels, allowing quick access to the parameters of the channel you’re using.

Your settings in your language

The DM7 series features a multi-language option for individual channel names enabling more comfortable and intuitive operation. Displaying the names of artists and instruments in native languages will also help operators with limited audio production or sound reinforcement experience to operate the system.

* Multi-language channel names can be inputted via the Editor or StageMix.

Functional and attractive layout

Strip lights illuminate fader surfaces to give engineers an advantage in darkened live venues. However, conventional mixing consoles have lacked a sense of uniformity with the strip lights often protruding unattractively. With the DM7 series, we designed the side pad connecting the strip light and fader surfaces with a smooth curve, creating a sense of unity. The shape of the side pad prevents light leakage from the strip light while serving as a guard to prevent accidental contact with USB memory sticks, knobs, etc.

Consistent user experience

Mixing engineers must set up, and create the best sound possible within a tight timeframe, but because the environment and equipment used varies from venue to venue, a console that is difficult to operate can increase workload. The DM7 series layout of buttons and knobs, functions, and graphics all adopt interface standards from other Yamaha series mixers for a familiar feel.

The DM7 series also inherits the smooth lines of the RIVAGE PM, CL, and QL consoles achieving a consistent design in terms of both operability and modeling.

Compact and lightweight construction for easy setup and transport

Ease of transport and a fast setup are among the most important features for mixing consoles in most environments and applications. With the DM7 series, the angle of the display, the pitch of the faders and buttons, and the position of the strip lights have all been carefully designed to maintain the high operability and visibility of the display in a compact chassis. The DM7 Compact can also be rack-mounted by removing the side pads, making the most of limited space at live sites.
